Uplifter UPG1200 vacuum lifter hire – heavy-duty glass lifter up to 1,200 kg

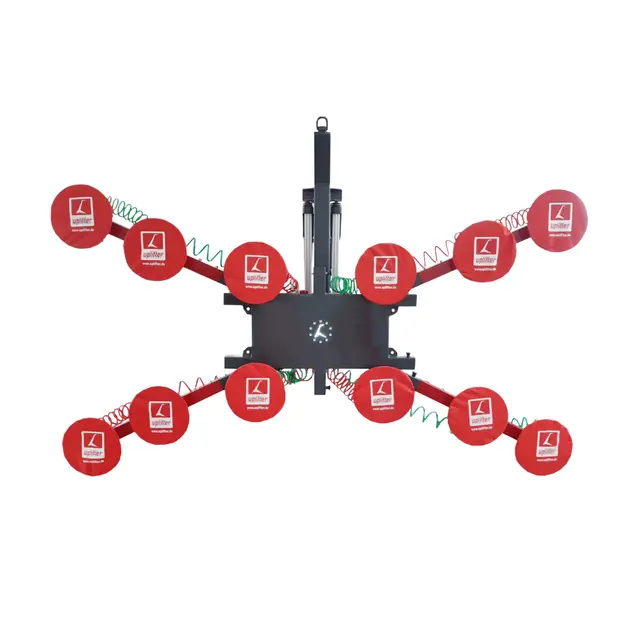

The Uplifter UPG1200 vacuum lifter is the heavy-duty lifter of the UPG range: up to 1,200 kg lifting capacity, a dual-circuit safety system and up to twelve variably positionable suction pads. This allows it to install oversized panes and heavy special elements for which even the UPG1000 is no longer sufficient. Like all UPG lifters, it is attached to a lifting device with a load hook. As owner of Uplifter, the Luibl Group rents out the UPG1200 at short notice, serviced, inspected and across Europe.

Technical data: Uplifter UPG1200 vacuum lifter

Data from the official Uplifter product information. We confirm binding values for your carrier machine and component on request.

FeatureValue
Max. lifting capacity1,200 kg
Suction padsup to 12, variably positionable (long rails)
Safety systemdual-circuit system
Rotation120° electric
Suction pad designsilicone-free (no marks)
Attachmentto any machine with a load hook (crane, telehandler, excavator)
Operationradio remote control and electric tilting unit included
Vacuum generation / power supplybattery power supply, charger included
Dead weight / dimensionsapprox. 190 kg with tilting unit (150 kg without); length max./min. 3.08/1.01 m; width max./min. 1.28/0.71 m

What sets the UPG1200 apart

Two features distinguish the UPG1200 from the other UPG lifters. The dual-circuit safety system works with two independent vacuum circuits: if one circuit fails, the second holds the load – an important safety gain with weights of more than one tonne. And the up to twelve suction pads sit on long rails and can be positioned freely, so the suction area can be adapted precisely to the format and centre of gravity of each pane. This keeps the UPG1200 usable even for very large or unusually shaped elements.

Suitable carrier machines

Handling 1,200 kg on the facade requires a powerful carrier machine – usually a large telehandler or a crane with sufficient reach and lifting capacity. The Luibl Group keeps suitable heavy-duty carriers in its rental fleet and matches the load chart, reach and load centre to the lifter.

Applications

  • XXL and special glazing: oversized insulating glass units and panoramic panes.
  • Architectural and prestige construction: heavy special elements with an exact centre of gravity.
  • Heavy panel logistics: large-format natural stone, concrete and metal panels up to 1,200 kg.
  • Industry: large-scale glazing on halls and facades.

Benefits of renting from Luibl

  • Close to the manufacturer: directly from the owner of Uplifter, handed over inspected.
  • Lifter and heavy-duty carrier from a single source: a suitable telehandler or crane can be rented as well.
  • Handed over inspected: inspection and maintenance included.
  • At short notice, across Europe, with organised heavy transport logistics.

Rent or buy?

The UPG1200 is a special unit for large projects that hardly any company uses to capacity on a permanent basis. Renting avoids a high investment in a rarely used unit, covers inspection and maintenance and provides the right suction pad configuration for every project.

CriterionRenting from LuiblBuying
Acquisitionnot required, rentedvery high investment
Economical froma single projectpermanently high utilisation
Inspection & maintenanceincludedown effort
Heavy-duty carriercan be rented as wellmust be kept separately

Safety

The UPG1200 is handed over serviced and inspected. The dual-circuit system increases fail-safety. Because of the high load and the freely positionable suction pads, correctly determining the centre of gravity is crucial – we advise on this and on coordination with the carrier machine at handover. We offer a machine briefing.

Other vacuum lifters and carrier machines

Slightly lower loads are covered by the UPG1000, medium formats by the UPG600 and UPG450. The Glassworker GW1125 is a self-propelled glazing robot for large panes. A mini crane is suitable as a carrier. Background information can be found in the guide Vacuum lifters – technology & types.

Frequently asked questions about the Uplifter UPG1200

What does the dual-circuit system mean?

The UPG1200 works with two independent vacuum circuits. If one circuit fails, the second holds the load – a safety advantage with heavy weights.

How many suction pads does the UPG1200 have?

Up to twelve, freely positionable on long rails to adapt them to the format and centre of gravity of the pane.

Which carrier machine is needed for 1,200 kg?

A powerful lifting device such as a large telehandler or crane; Luibl can supply the suitable heavy-duty carrier on request.

Do the suction pads leave marks?

No, they are silicone-free.

Is the inspection included?

Yes, every unit is serviced and inspected; the records are included, and a briefing can be booked as an option.

Request the Uplifter UPG1200 now

Request your non-binding rental quote for the UPG1200 – we match the suction pad configuration, centre of gravity and carrier machine to your large-scale project.
